Description

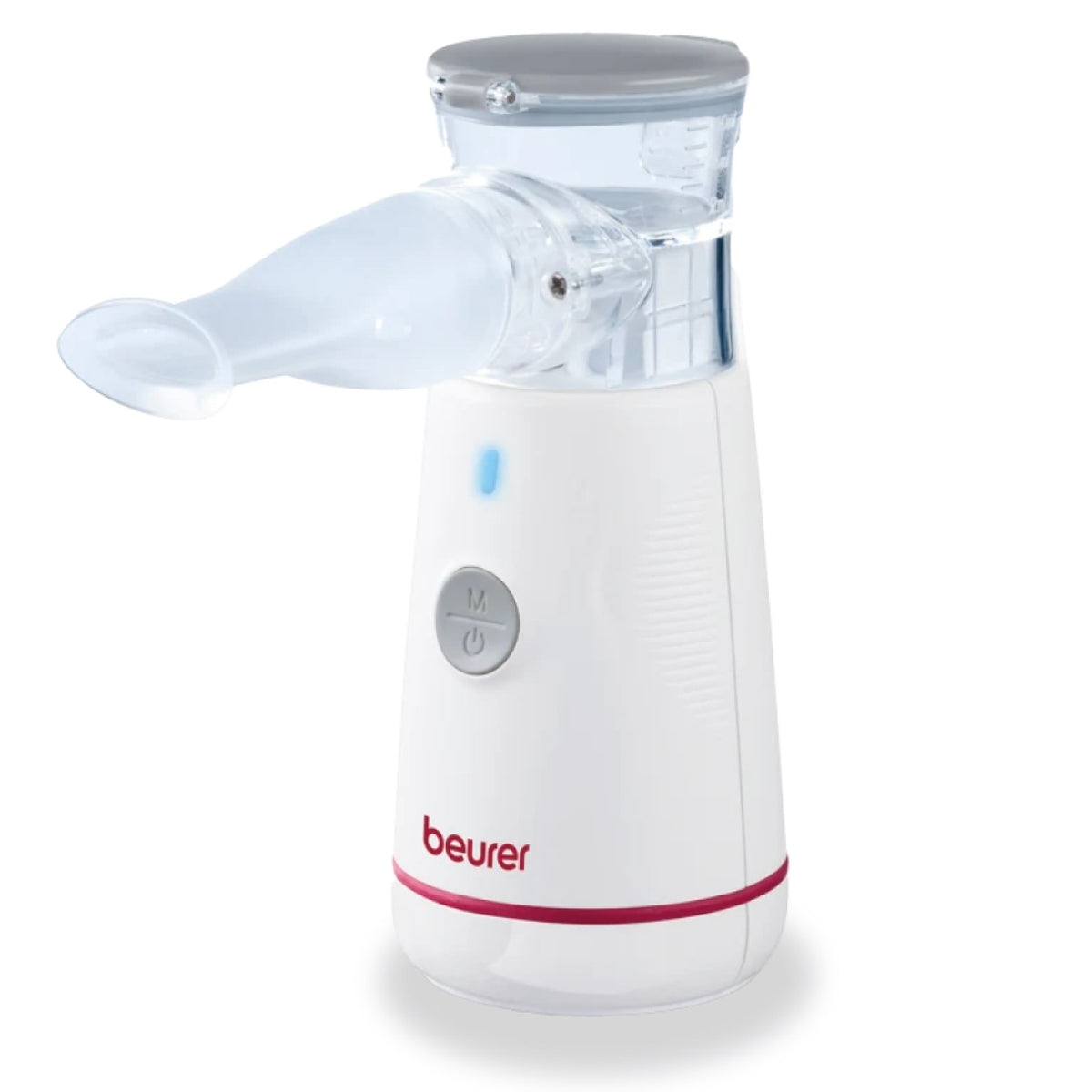

Beurer Germany IH 47 Nebulizer Ideal for Adults, Children & On-the-Go. Compact. Cordless. USB Rechargeable. Quick & Effective

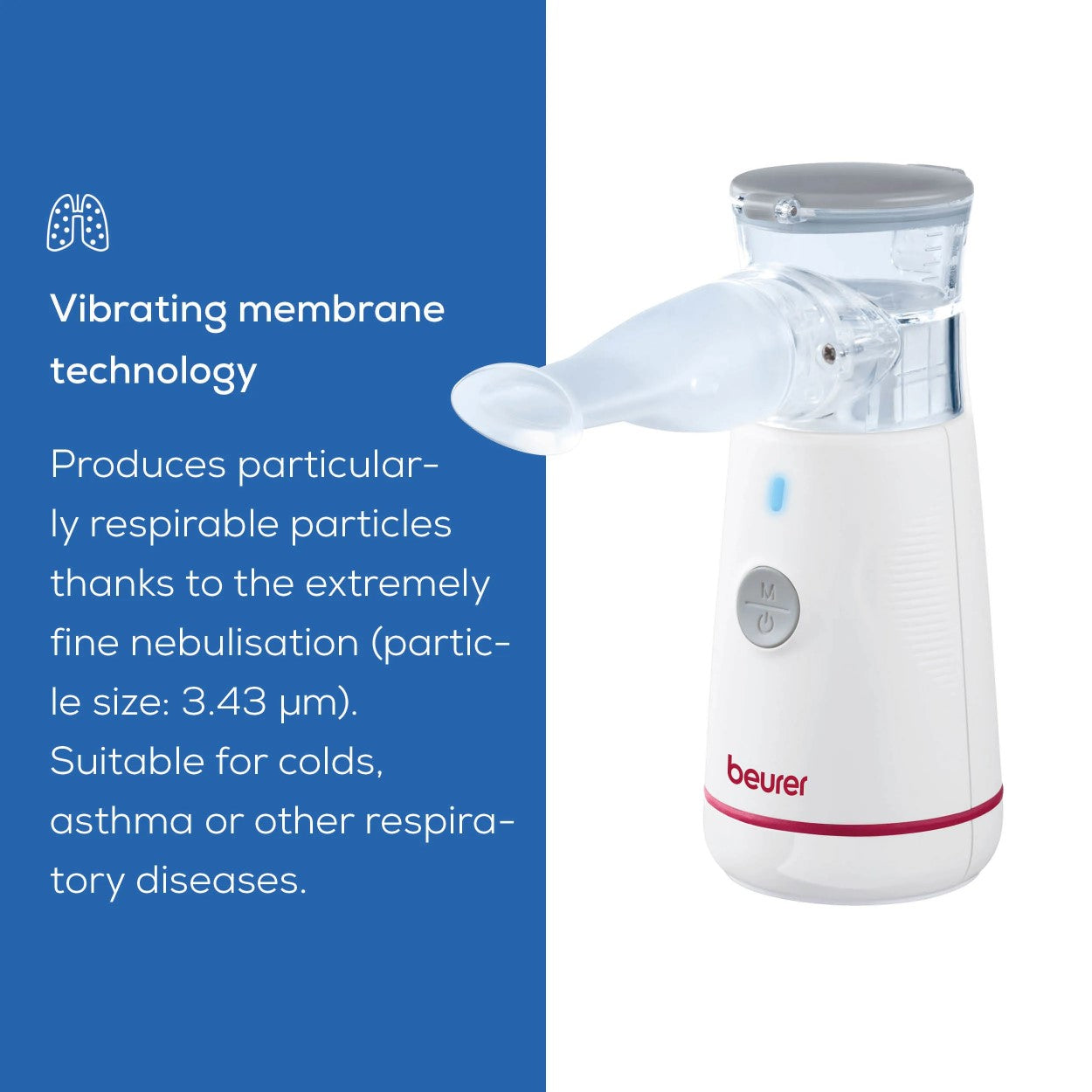

- Nebulisation using innovative, fast & effective vibrating membrane technology.
- USB rechargeable compact cordless device – making it perfect for at home and on-the-go
- Small & light
- Whisper-quiet operation (approximately 45 dB(A))
- Suitable for adults and children (includes a children’s mask)
- For treating the upper and lower airways
- Ideal for treating colds, asthma and other respiratory diseases.
- Hygienic due to self-cleaning function
- Particle size (MMAD): 3.43 microns (1 000 microns is equal to 1 mm)
- High nebulisation performance resulting in a short inhalation time (low nebulisation rate: ≥0.15 ml/min, high nebulisation rate: ≥0.25 ml/min)

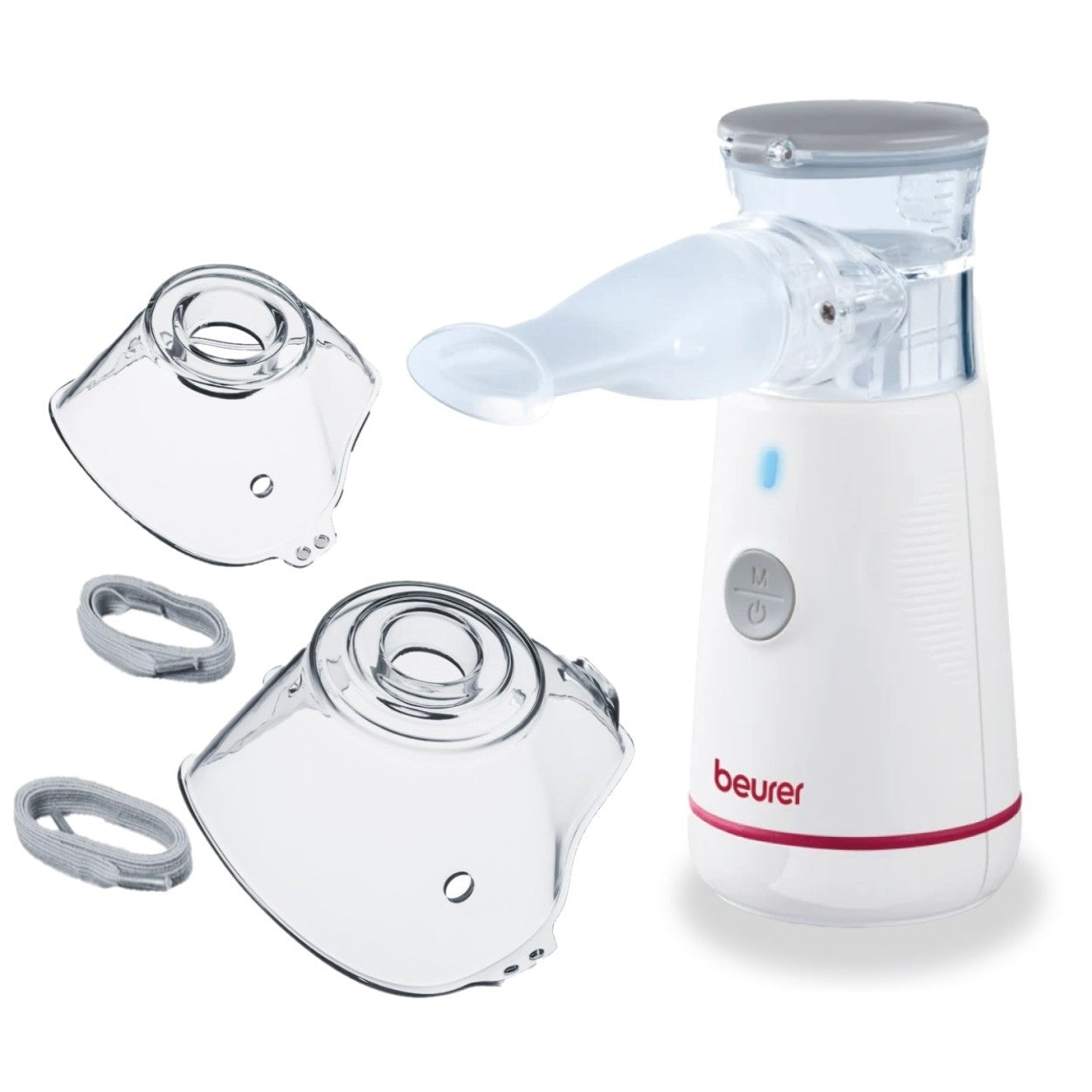

- Included accessories: Mesh atomiser with medication container, mouthpiece, adult mask, children’s mask, storage bag and USB-C cable
- Medical device according to the new Medical Device Regulation (EU) 2017/745 (MDR)
Beurer German Engineering
Beurer German Health & Wellbeing
Beurer Quality Since 1919
Clinical Benefits of Using a Nebuliser
Inhalation is the most effective way to administer medication for most respiratory diseases.
It offers the following benefits:
• The medication is transported directly to the target organs
• The local bioavailability of the medication is significantly increased
• Systemic diffusion is significantly reduced
• Only very low doses of the medication are required
• Fast and effective therapeutic effect
• Side effects are significantly lower compared to systemic administration
• Humidifying the airways
• (Bronchial) secretions are loosened and liquefied
• Bronchospasms (spasmolysis) are released
• Swelling and inflammation of the bronchial mucosa is alleviated
• Secretions can be coughed up
• Respiratory infection pathogens are combated
Indications for Use
The nebuliser can be used for diseases of the upper and/or lower airways.
Examples of upper airway diseases include:
• Nasal mucosal inflammation
• Allergic nasal mucosal inflammation
• Nasal sinus infection
• Pharyngitis
• Laryngitis
Examples of lower airway diseases include:
• Bronchial asthma
• Bronchitis
• COPD (chronic obstructive pulmonary disease)
• Bronchiectasis
• Acute tracheobronchitis
• Cystic fibrosis
• Pneumonia
Charging the Nebuliser Battery
Proceed as follows to charge the nebuliser battery:
Connect the USB-C cable included in delivery to the USB-C port on the bottom of the nebuliser and a USB mains adapter (not included in delivery).
Plug the USB mains adapter into a suitable socket.
Lie the nebuliser flat on its back during the charging process.
While charging, the LED display will continuously light up orange. As soon as the battery is fully charged, the LED display will continuously light up green.
It usually takes approximately 1.5 hours for the battery to be fully charged.
As soon as the battery is fully charged, remove the USB-C cable with the USB mains adapter from the socket and the USB-C port on the nebuliser.
When the battery is fully charged, the battery life is approximately 1 hour and 15 minutes.
If the LED display lights up orange while the device is in use, this indicates a low battery level.
The type of low battery level display depends on how the device is used.
If you have selected a high nebulisation rate, the LED display will be a continuous orange. If you have selected a low nebulisation rate, the LED display will slowly flash orange.
The nebuliser cannot be used during the charging process.
Automatic Switch-Off
The device has an automatic switch-off function.
When there is only a very small amount of medication or liquid left or when the substance to be nebulised is no longer in contact with the mesh, the device switches off automatically to prevent damage to the mesh.
If nebulisation ends automatically, the automatic switch-off has been activated.
The LED display flashes blue quickly and the device then switches off.
After a nebulisation period of 15 minutes, the device switches off automatically.
Do not operate the device if the medication container is empty.
The device detects when there is no medication in the medication container and will switch off automatically.
Spare Parts / Accessories:
As with any plastic parts, atomisers and their accessories are affected by a certain amount of wear and tear when used and hygienically prepared on a frequent basis.
We therefore recommend that you replace the atomiser and spare parts after a year.

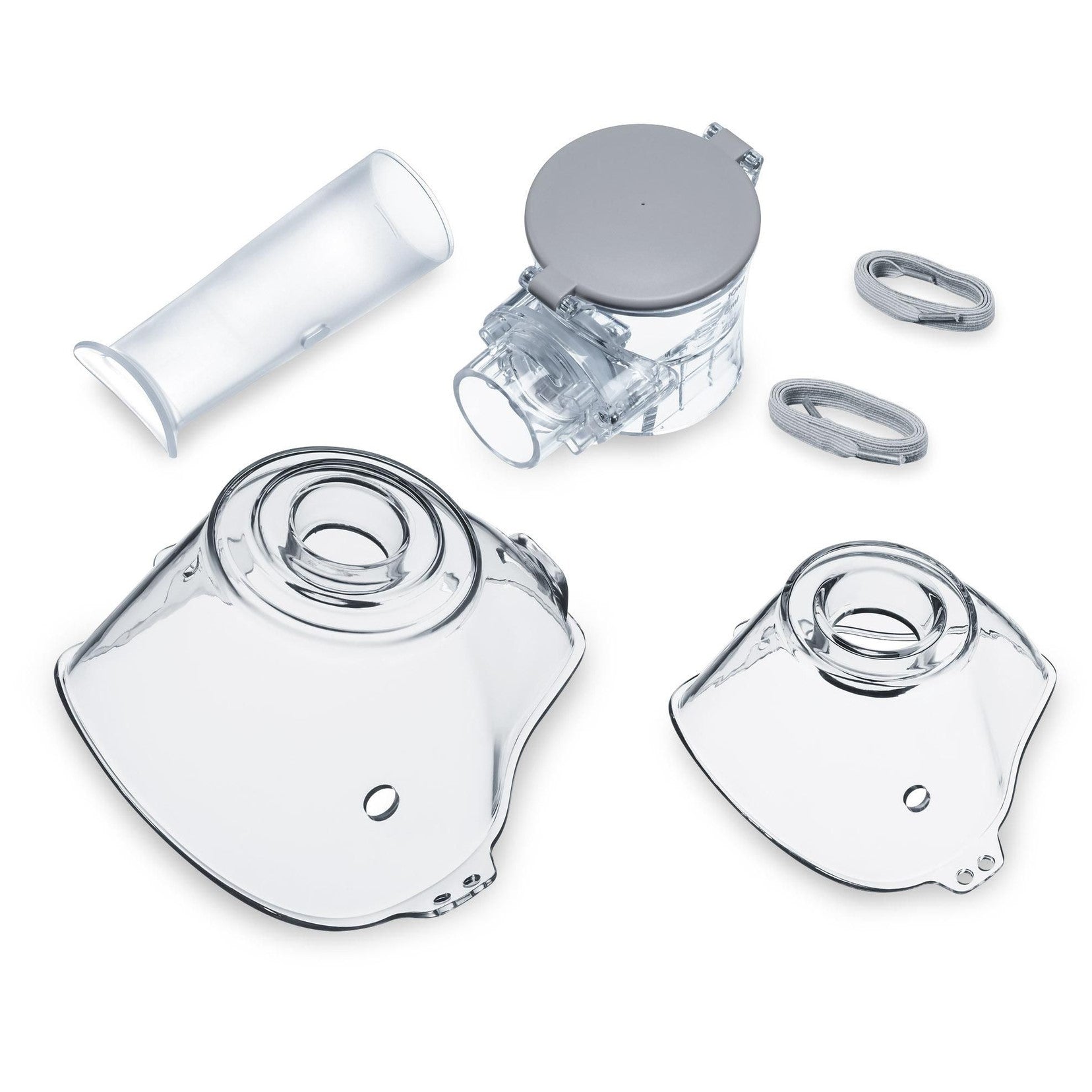

The Year Pack for the IH 47 Nebuliser is available for purchase separately (SKU: IH 47 SPARE).
Specifications:
Technology: Vibrating membrane
Medical device
CE
Battery-powered
Nebulisation performance: approx. 0.25 ml/min.
Particle size: 3,43 microns
Automatic switch-off
Product dimensions: 4.8 × 5.9 × 11.5 cm
Product weight approx. 926 g
Input 5 V DC; 1.2 A
Energy consumption ≤ 2.5 W
Filling volume Min. 0.5 ml, Max. 10 ml
Medication Flow Rate: Low nebulisation rate: ≥ 0.15 ml/min; High nebulisation rate: ≥ 0.25 ml/min
Vibration frequency 110 kHz ±10 kHz
Sound pressure Approx. ≤45 dB(A)
Lithium-ion rechargeable battery:
Capacity 600 mAh
Nominal voltage 3.7 V
Limited 5-year warranty
Article number: 10389 / SKU IH 47

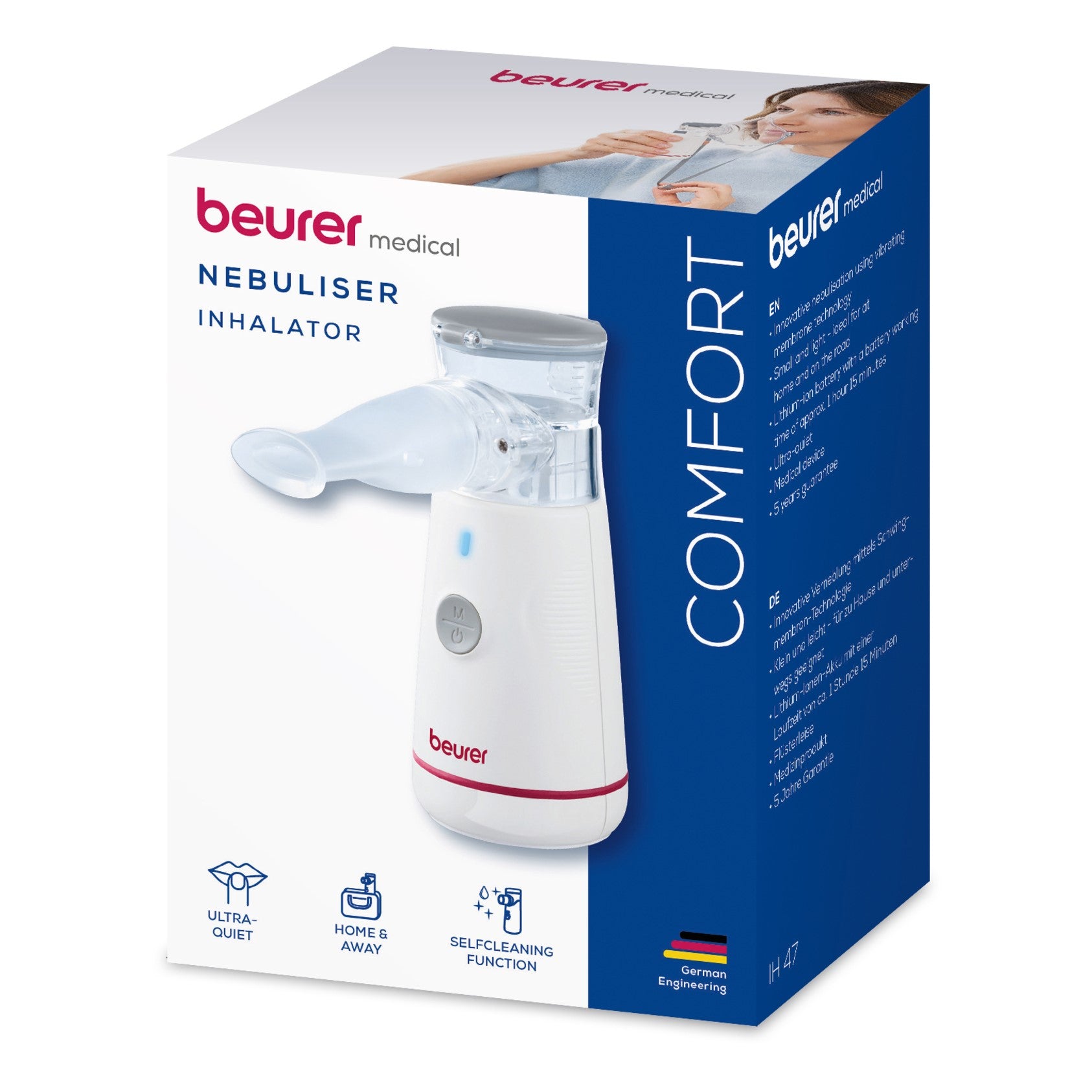

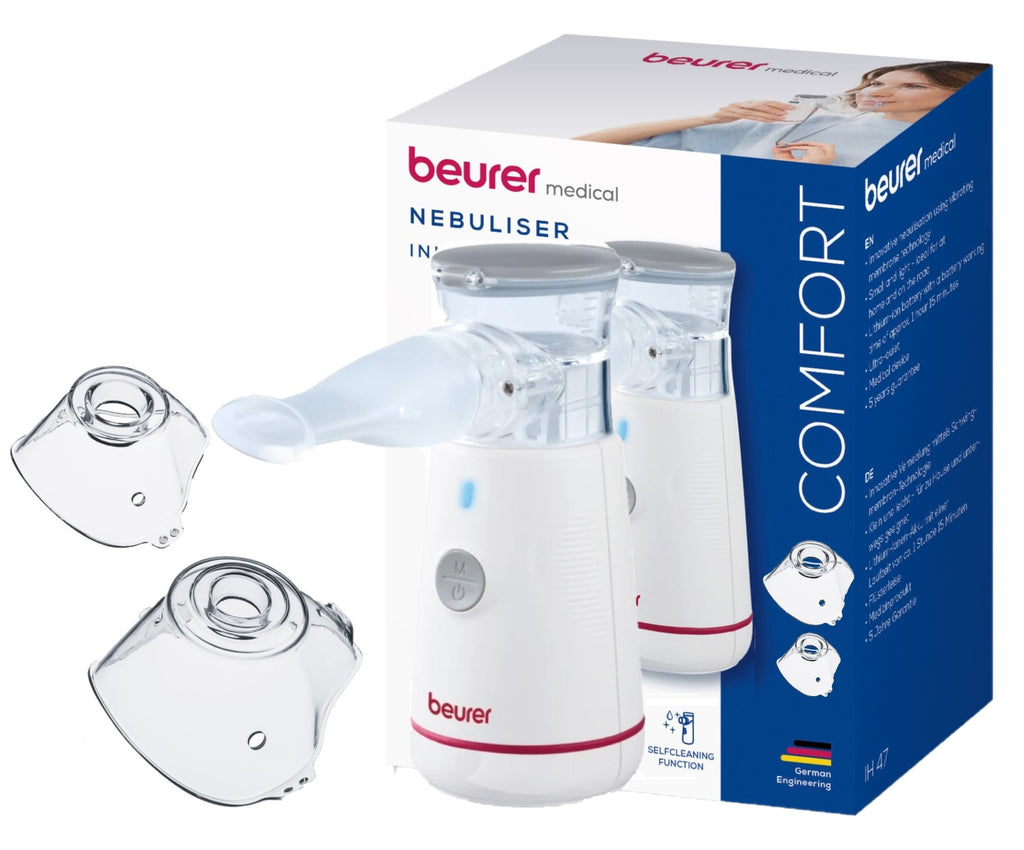

What’s in the Box:
1x Nebulizer
1x Mesh atomiser with medication container
1x Mouthpiece
1x Adult mask made from PVC
1x Children’s mask made from PVC
1x USB-C cable
1x Instructions for use
